Extrusions

700 SHOPFRONT SUITE 100x45
Lengths of 6.5 & 1m

Product	Description	Item Code

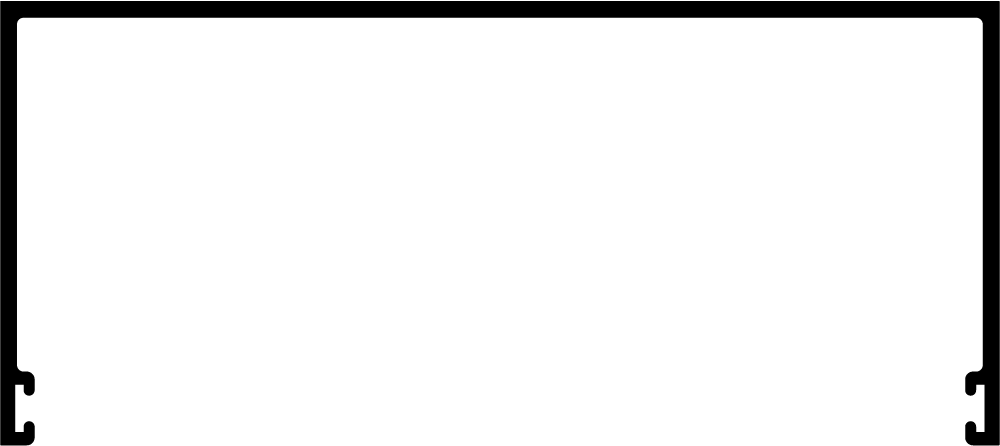

700 110.5mm x 49mm	Sub Head Accepts 701	700

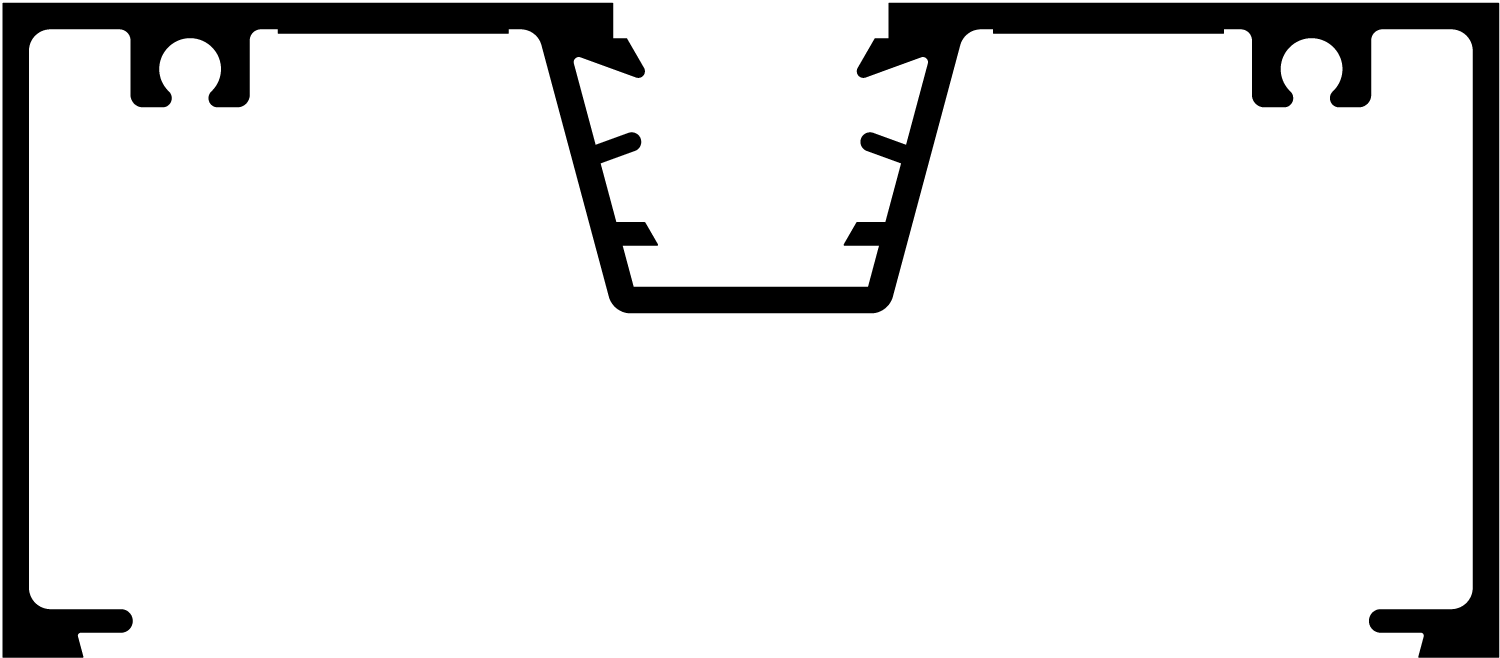

701 101.6mm x 44.4mm	Mainframe Accepts 700, 702, 706, 707, 709, 711, 713, 715, 723 Light 2.8m long 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 glass P41 one side only	701 701AL

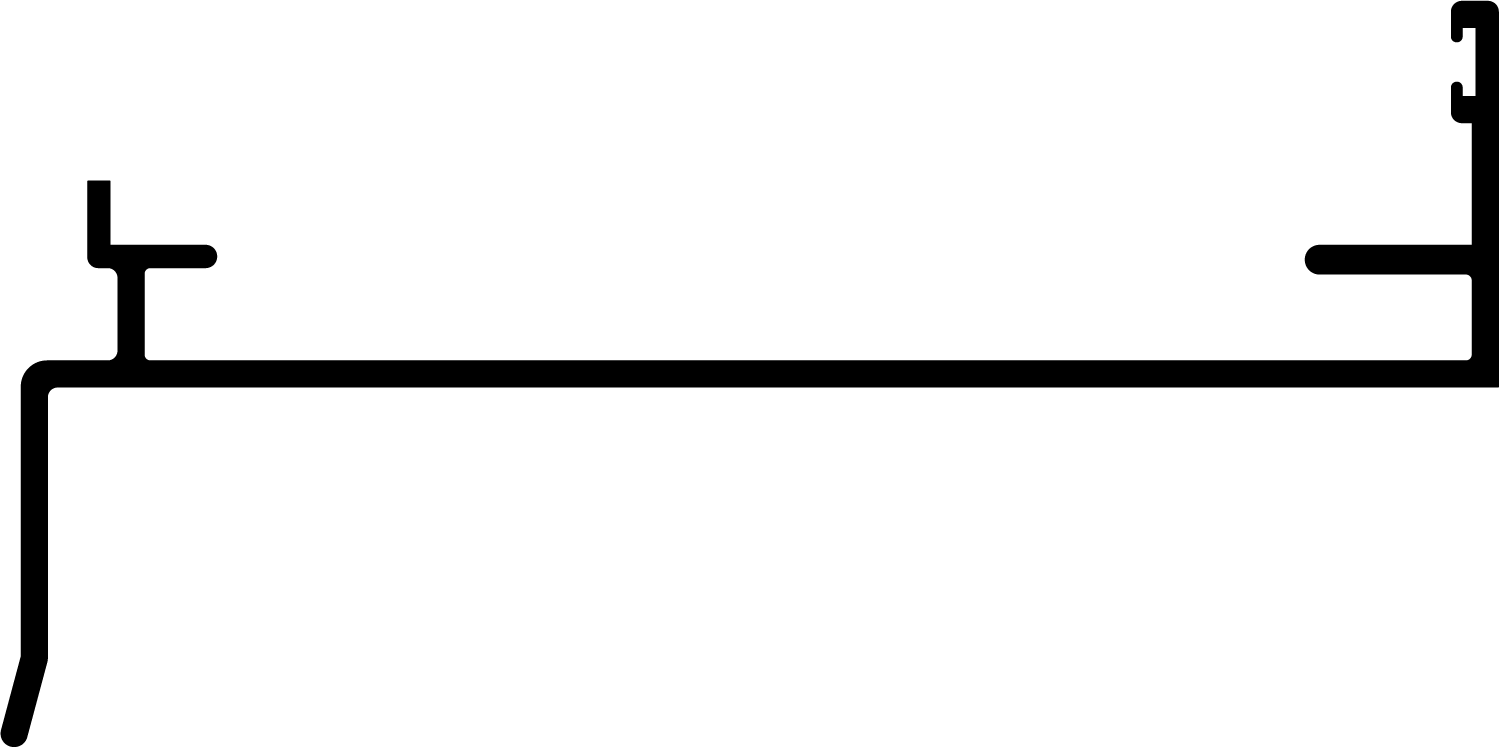

702 115mm x 60mm	Sub Sill Accepts 701, 703, 712, 714, 716, 717, 718	702

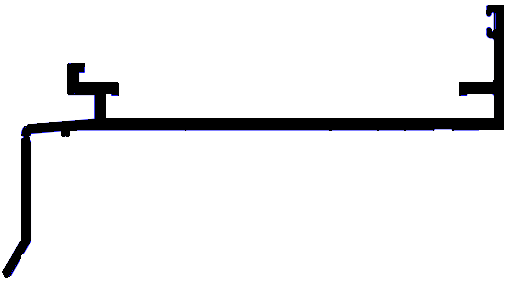

702-1	15mm Sub Sill	702-1

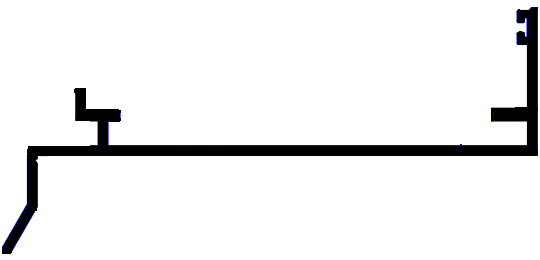

702-2	Sub Sill Light Duty	702-2

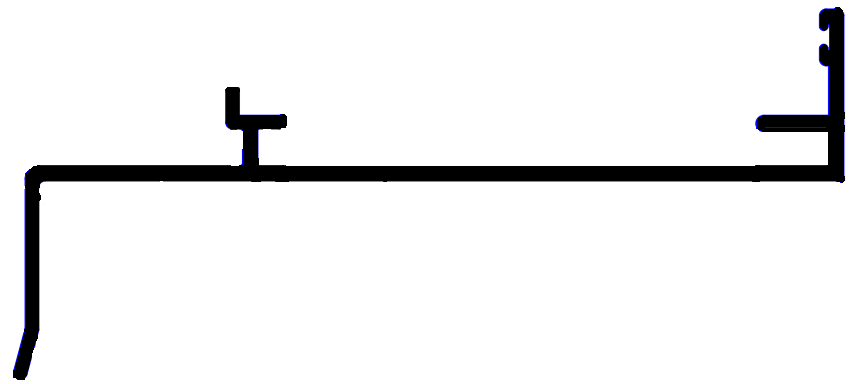

702-3	Sub Sill 35mm Set Back	702-3

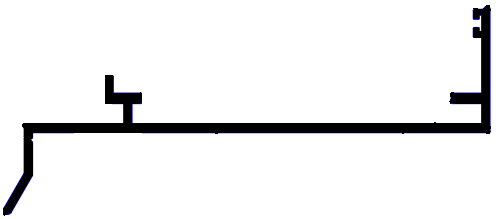

702-4	Sub Sill 25mm Set Back	702-4

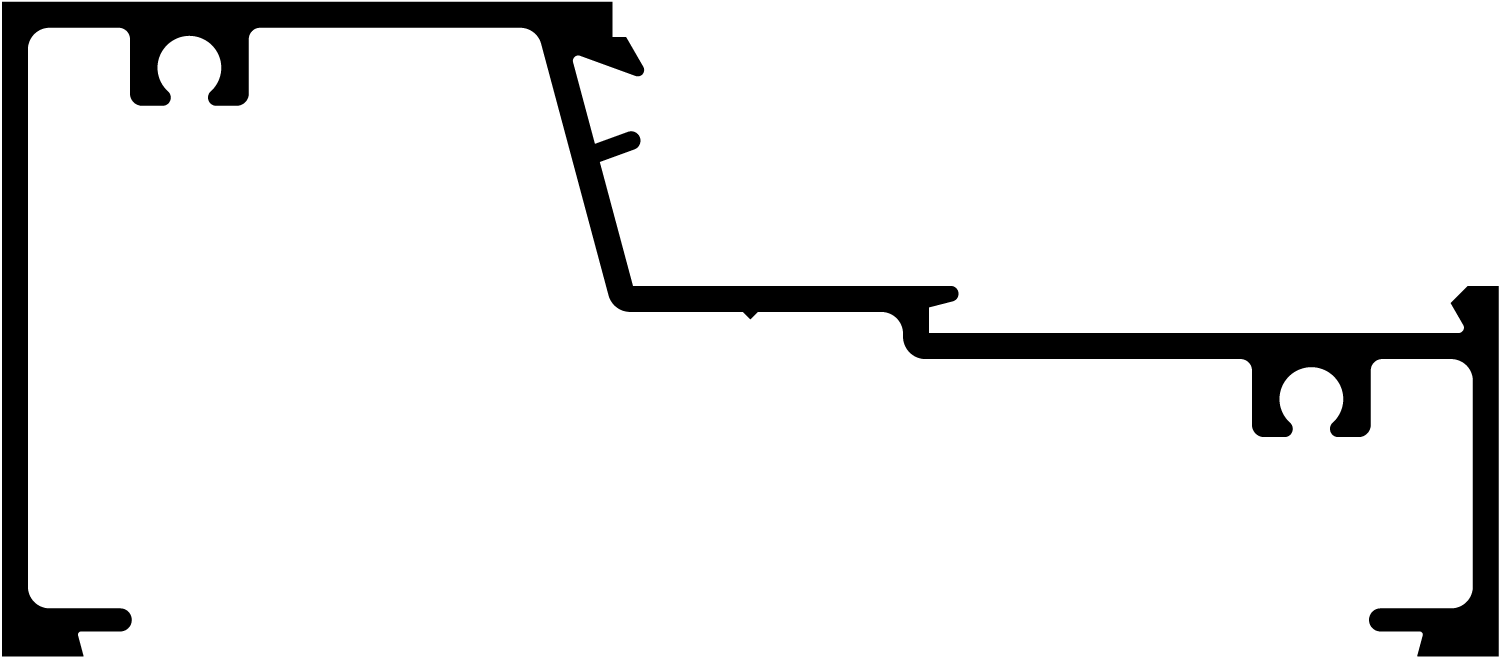

703 101.6mm x 44.4mm	Sill / Transom Accepts 702, 703, 709, 711 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 glass P41 one side only	703

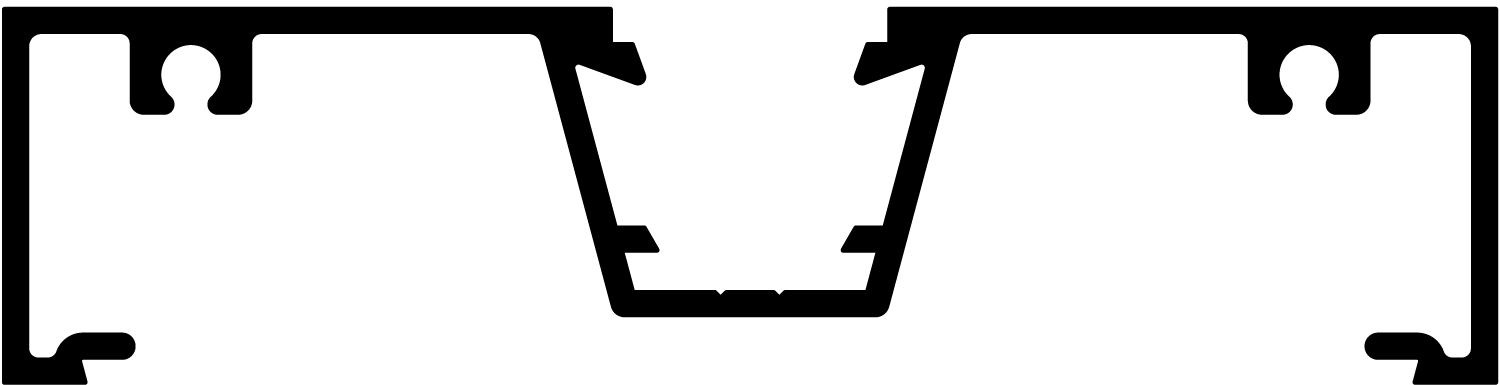

704 101.6mm x 25.4mm	Narrow Mainframe Accepts 700, 702, 706, 707, 709, 711, 713, 715, 723 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 glass P41 one side only	704

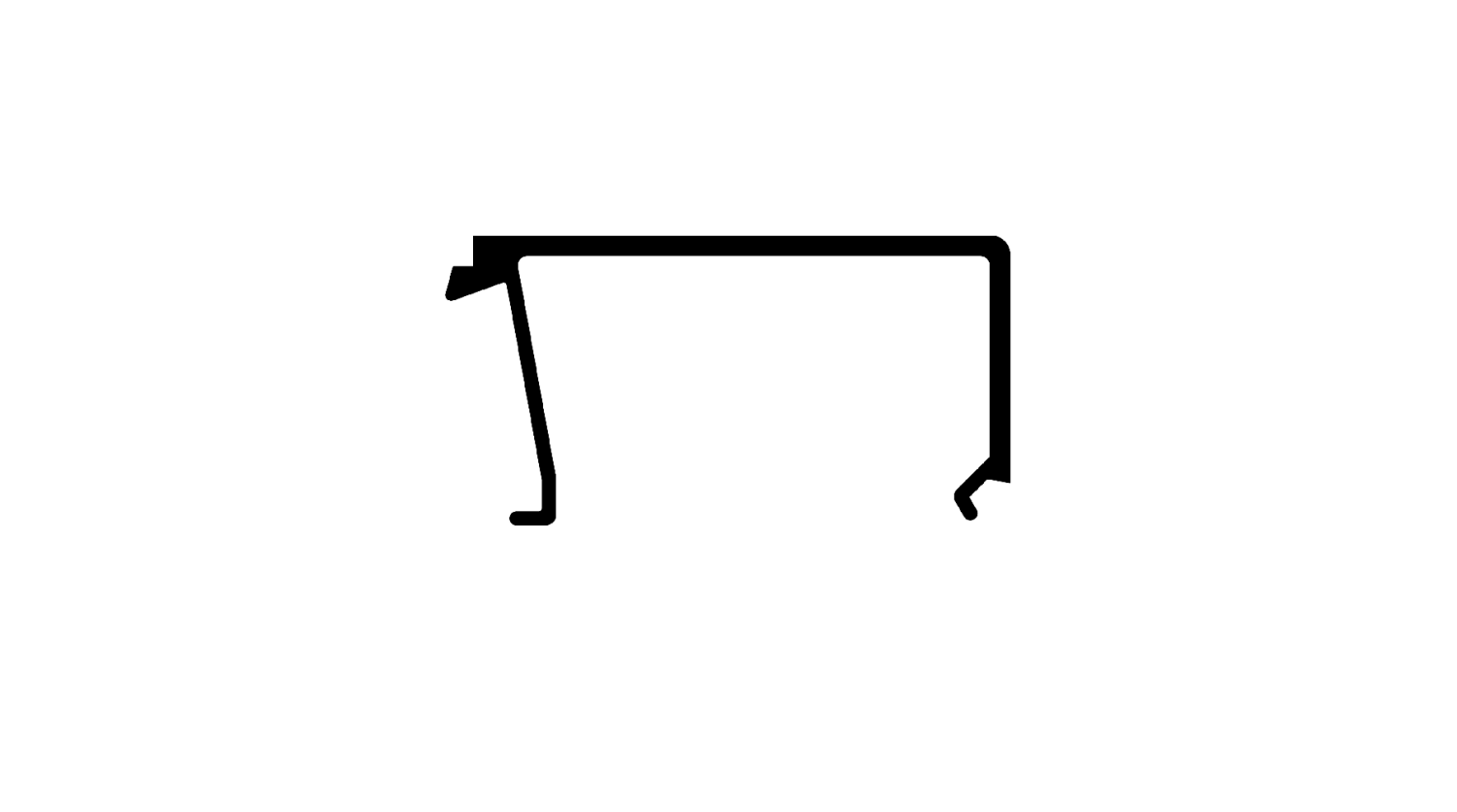

705 41.4mm x 19.2mm	Bead Accepts 703	705

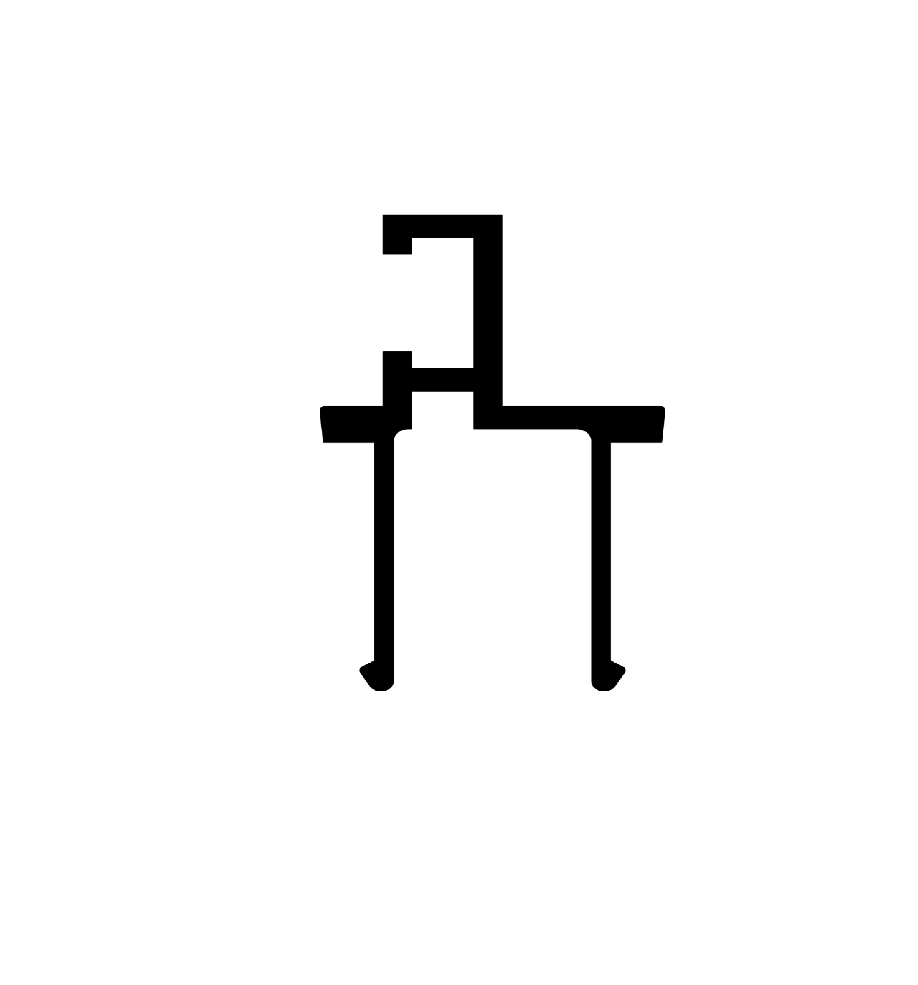

706	Door Stop Accepts 40mm Thick Door 701, 704, 709, 716	706

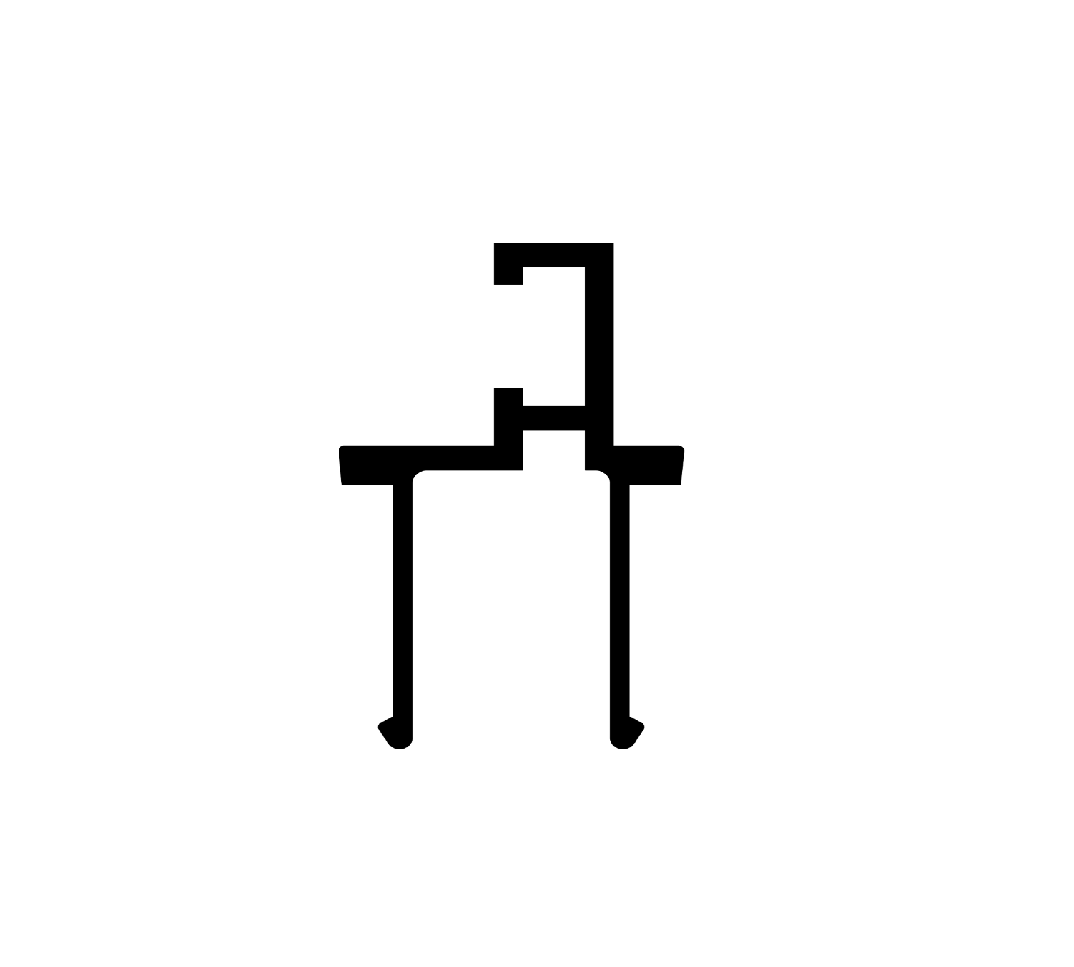

707	Door Stop Accepts 45mm Thick Door 701, 704, 709, 716	707
708	Self Mating Mullion	708

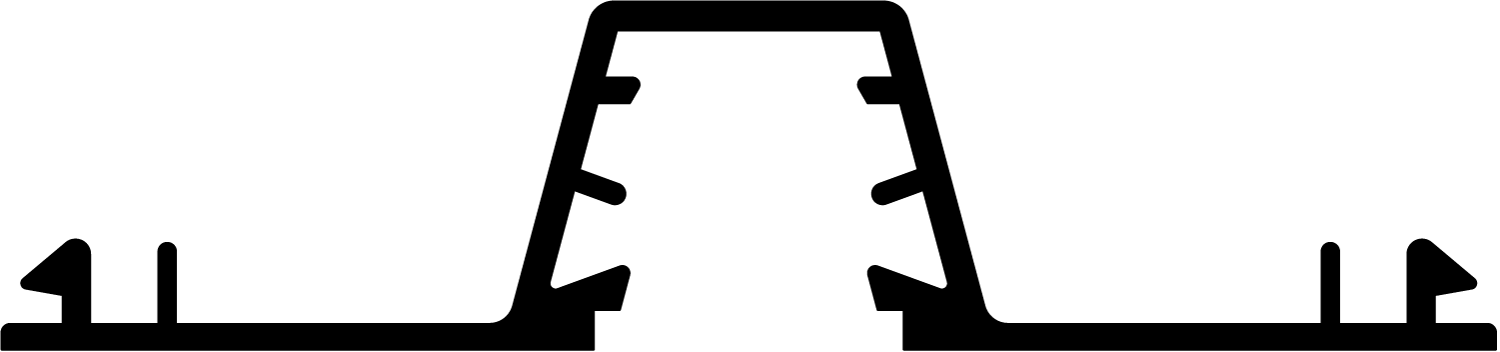

709 90.4mm x 19.3mm	Glazing Adaptor Accepts 701, 703, 704, 706, 707, 713, 715, 716, 719	709

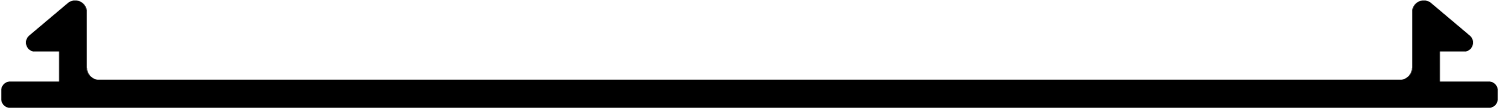

711 90.6mm	Flush Filler Accepts 701, 703, 704, 716, 719	711

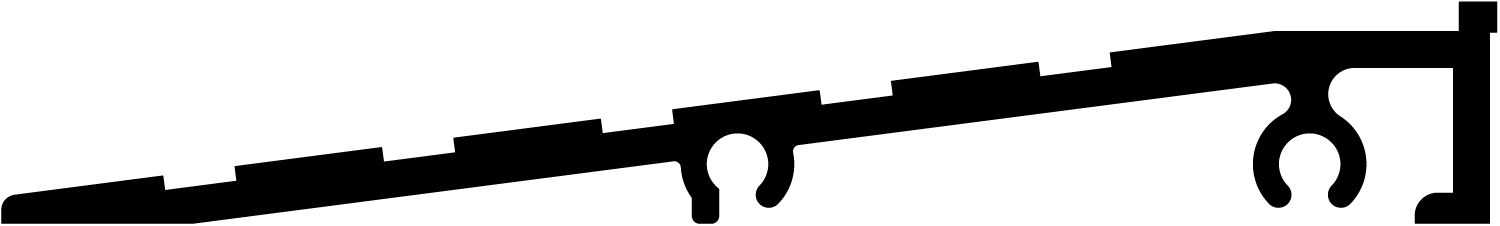

712 101mm x 15mm	Threshold	712

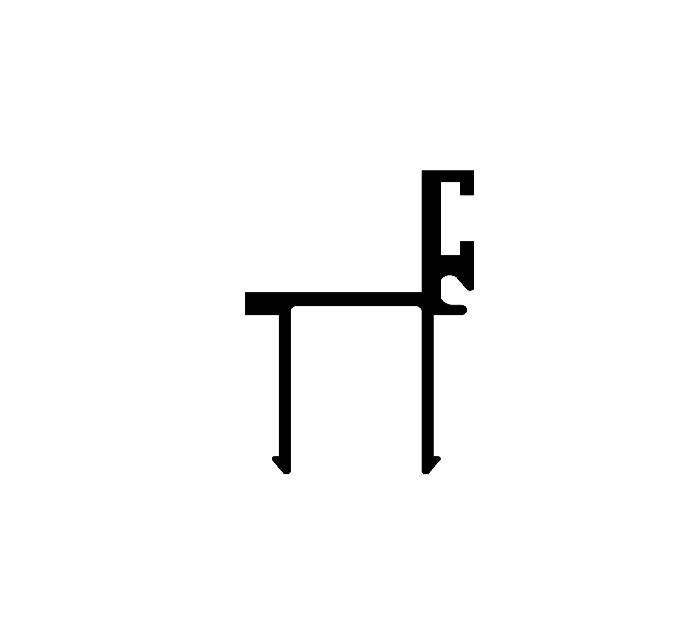

713	Door Stop 35mm Accepts 35 mm Thick Door 701, 704, 709, 716	713

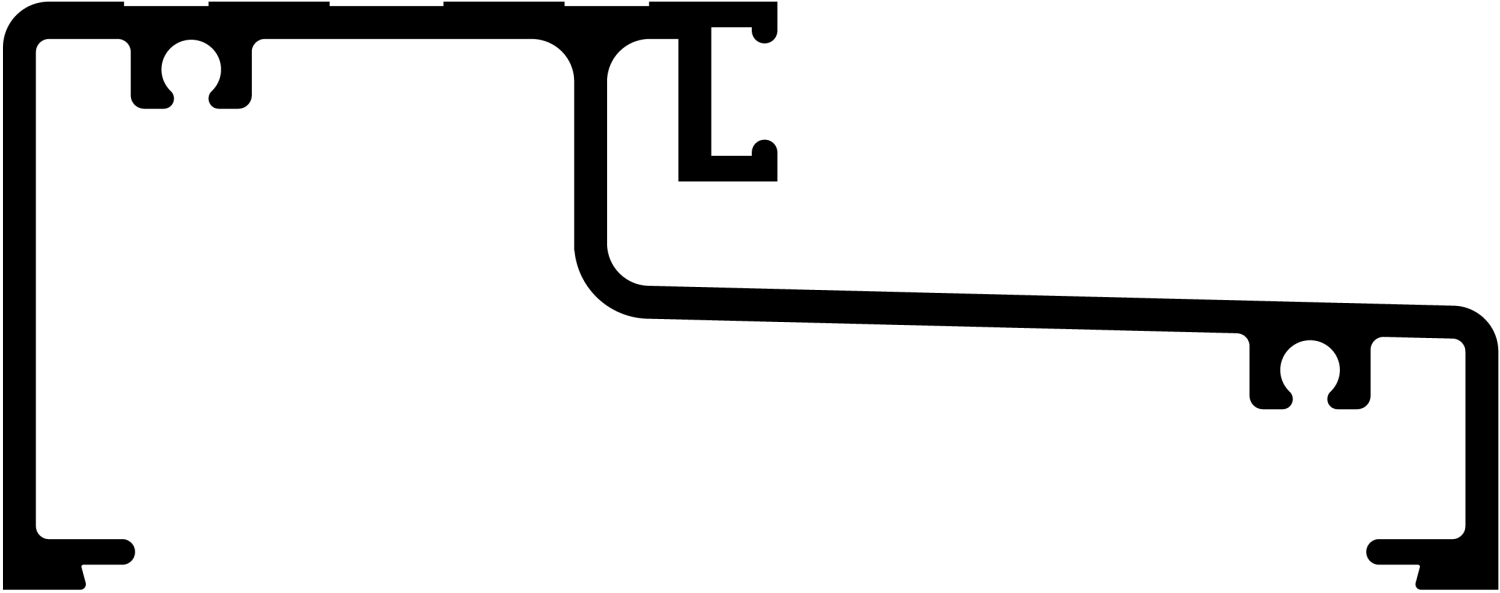

714 101mm x 25mm	Threshold	714

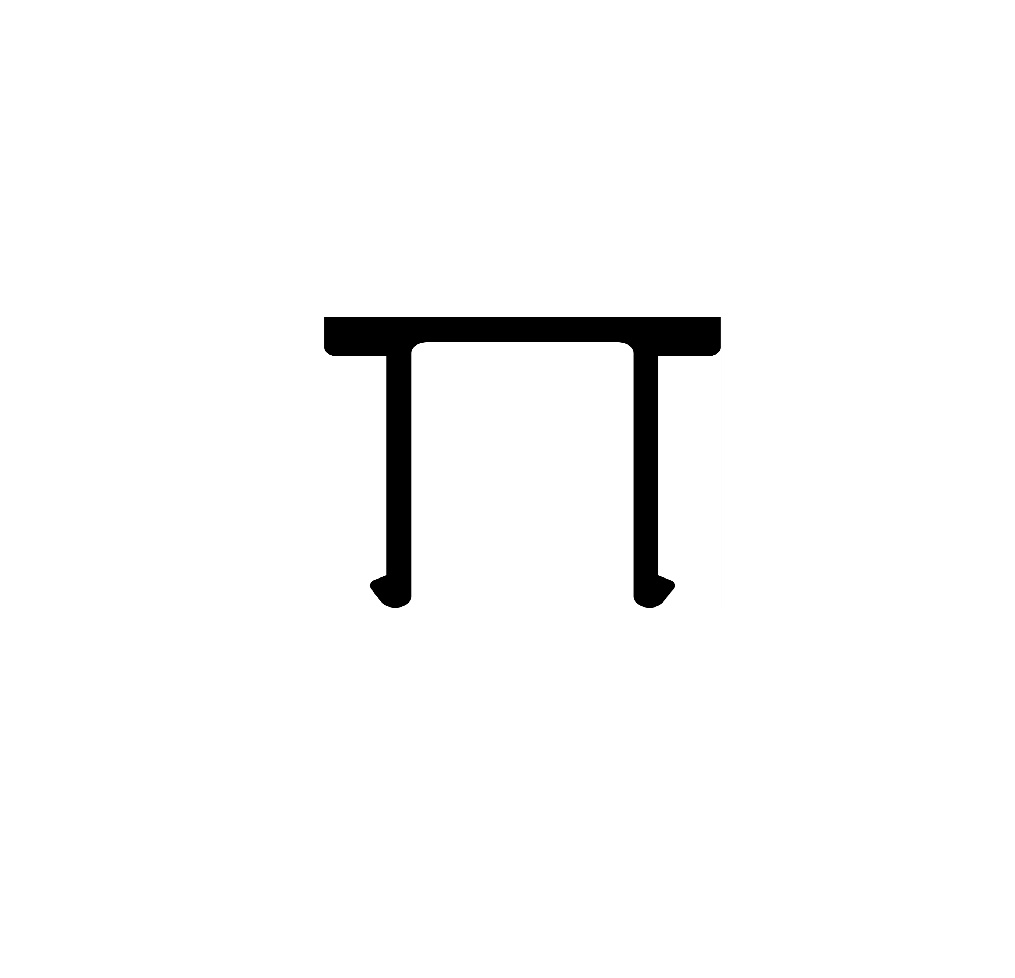

715	Pocket Filler Accepts 701, 704, 709, 716	715

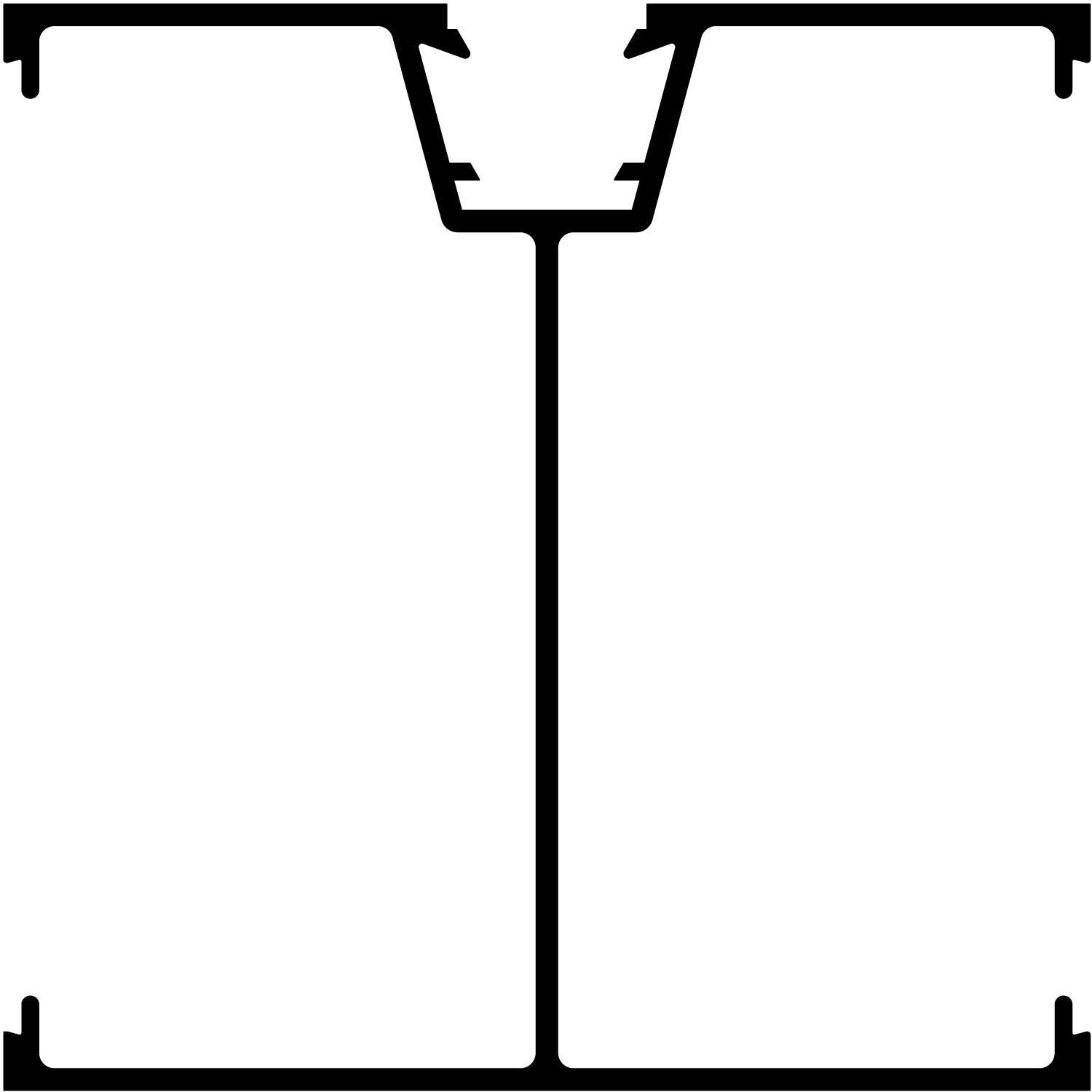

716 101mm x 101mm	Corner Post Accepts 700, 702, 706, 707, 709, 711, 713, 715, 723 6.38 glass P40 both sides 10.38 glass P41 both sides 12.38 glass P41 one side only	716

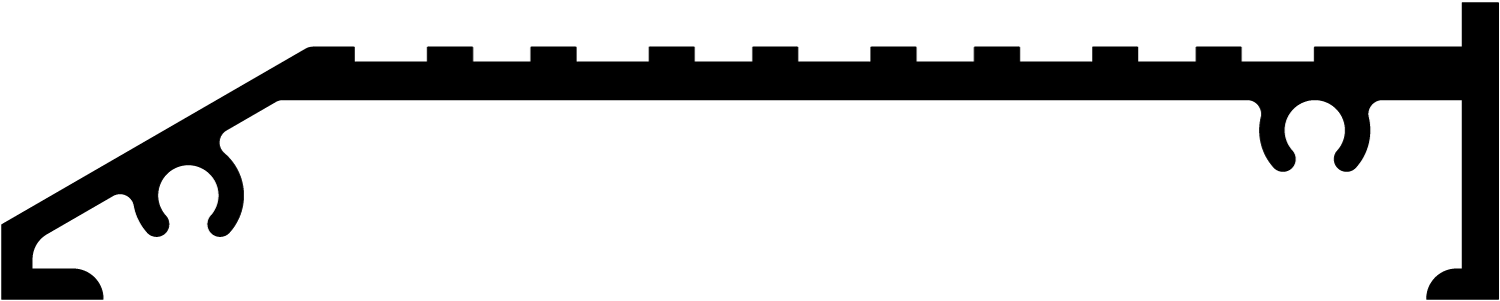

717 101mm x 19mm	Threshold	717

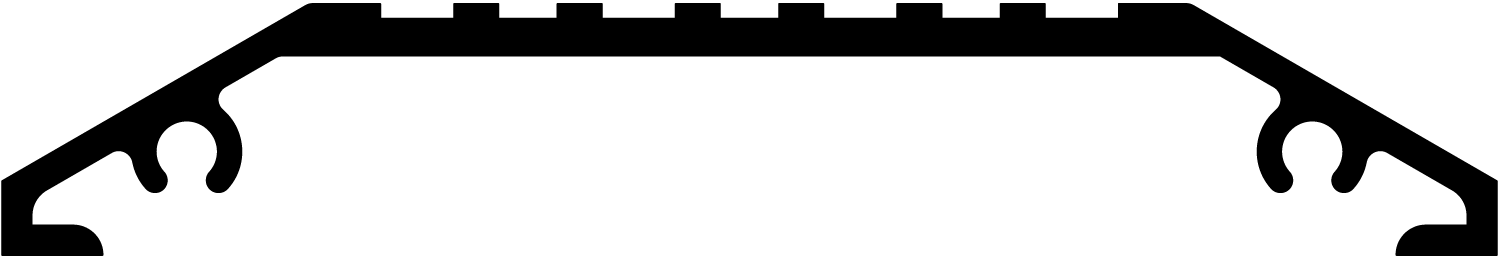

718 101mm x 15mm	Threshold	718

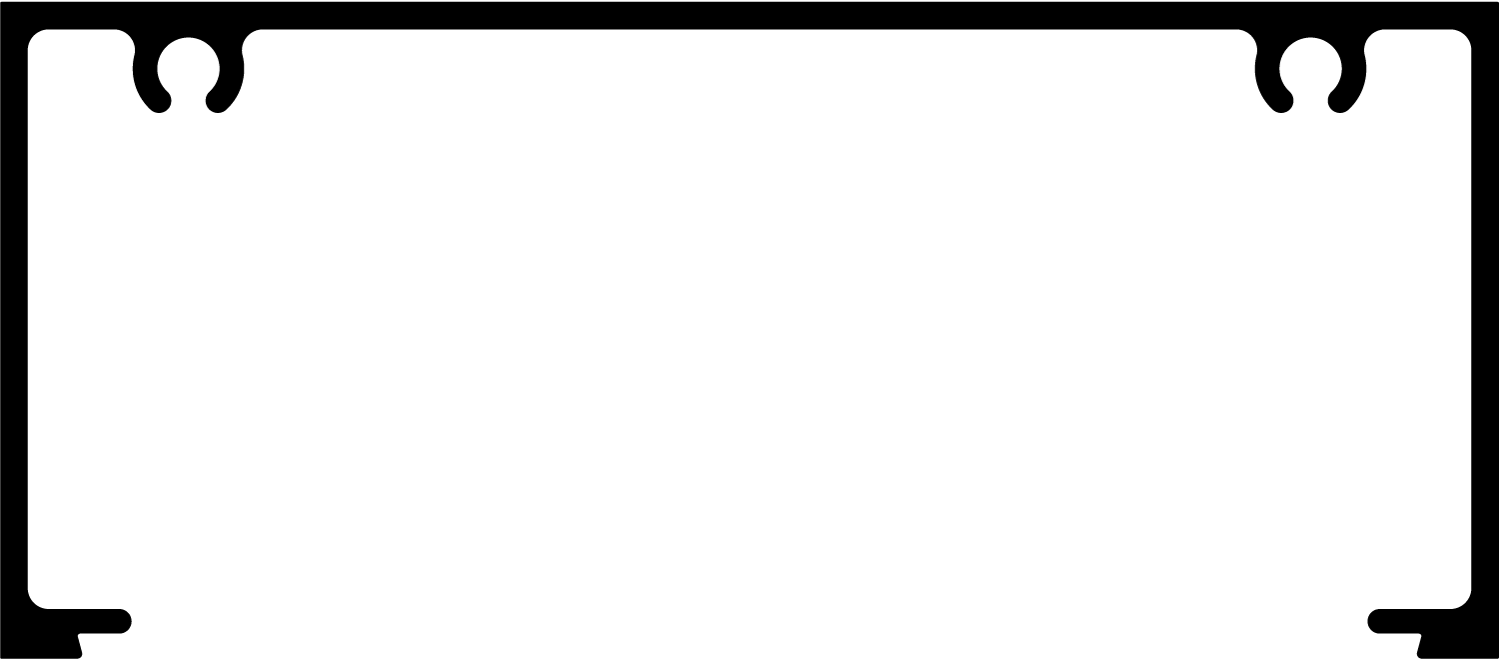

719 101mm x 45mm	Plain Frame/Box Accepts 709, 711	719

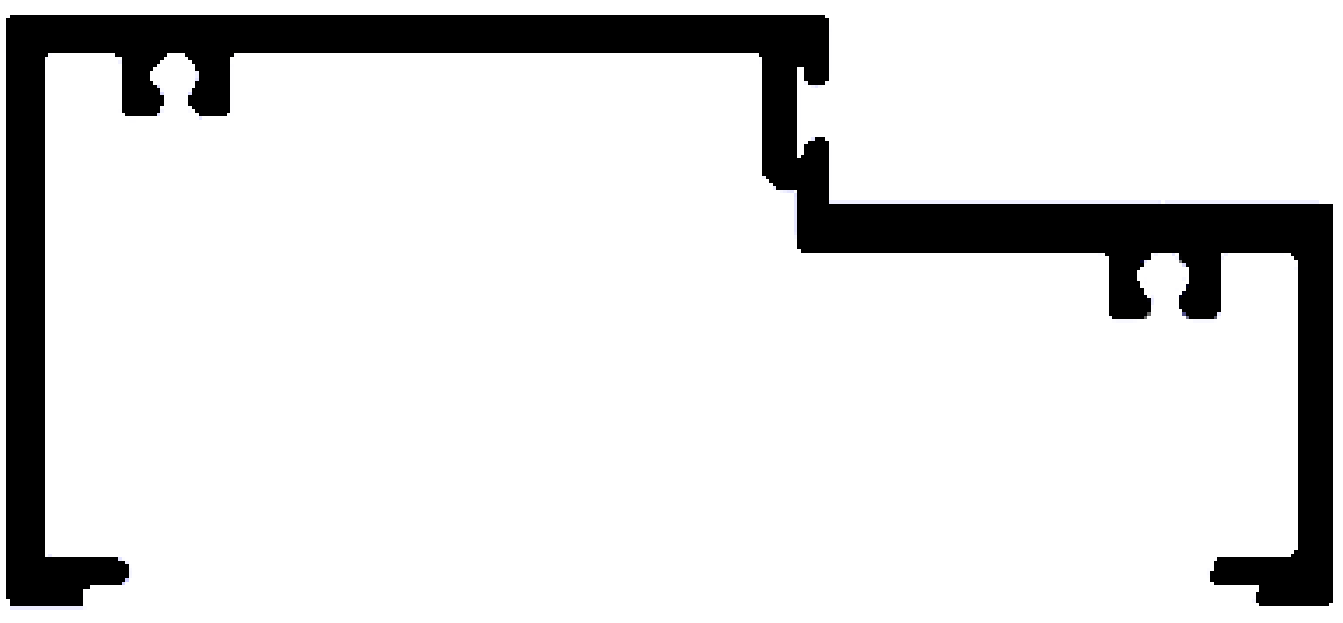

722 101mm x 45mm	Threshold 35mm	722

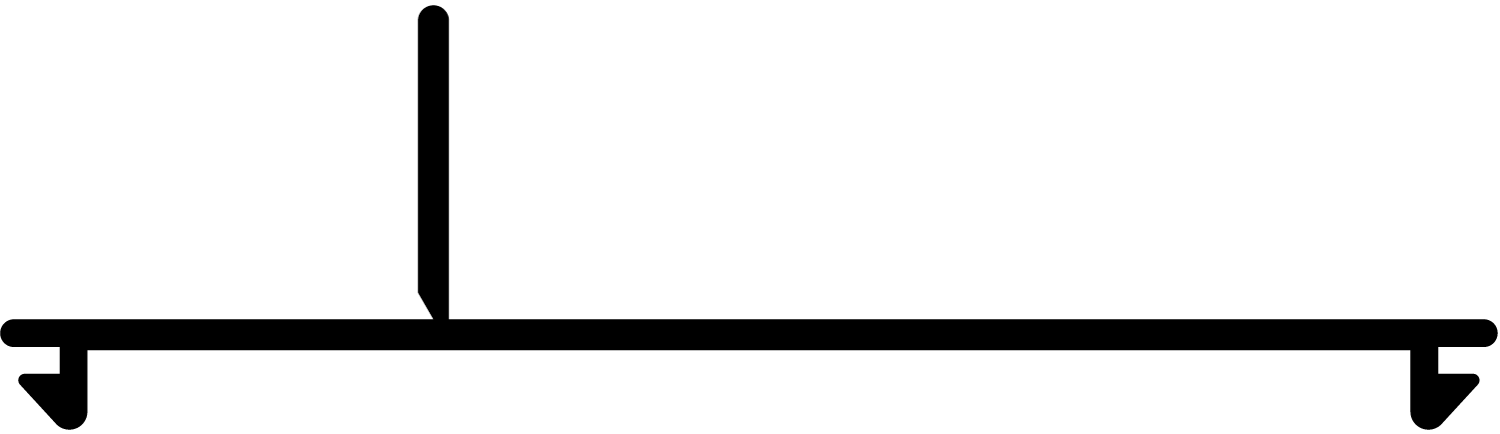

723 90.5mm x 19mm	Flashing Adaptor Accepts 701, 703, 704, 716	723

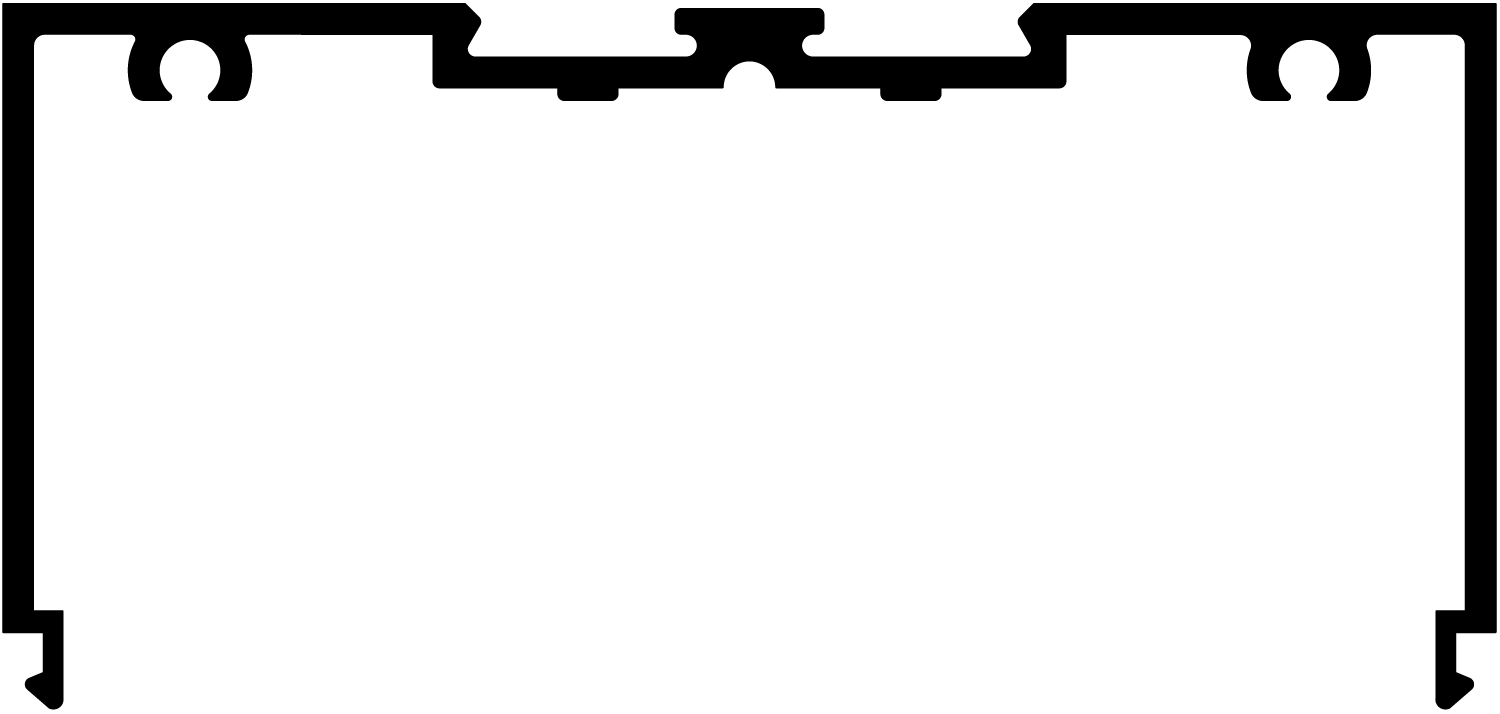

724 101mm x 50mm	COC Transom Accepts 028, 725	724
028	Glazing Bead Accepts 025, 026, 027, 035, 724, 003, 004	028

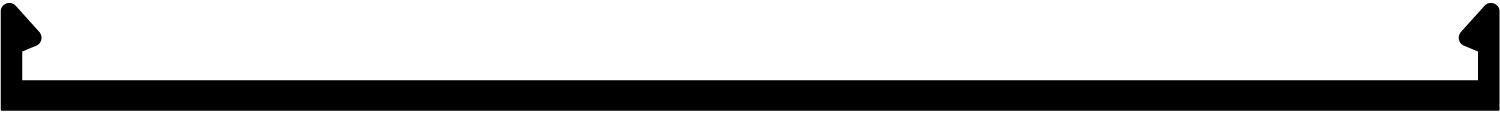

725 101mm	COC Transom Cover Accepts 724	725

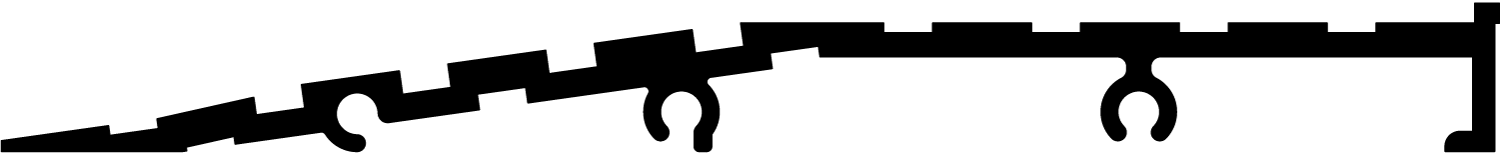

726 152mm	Threshold	726

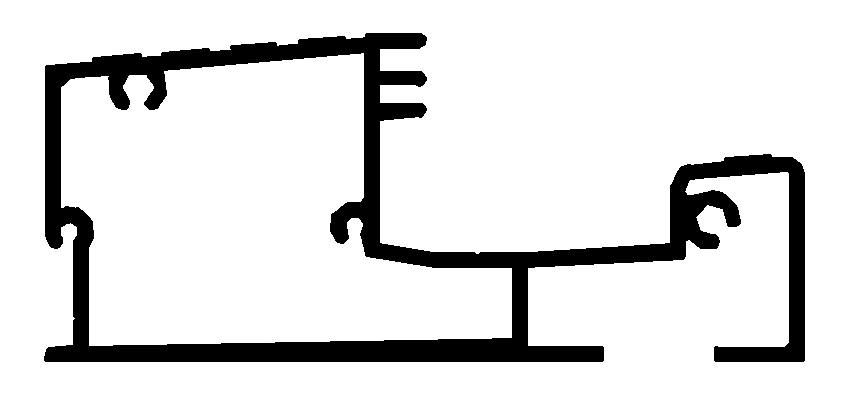

728	45mm Water Rated Inward Sill	728

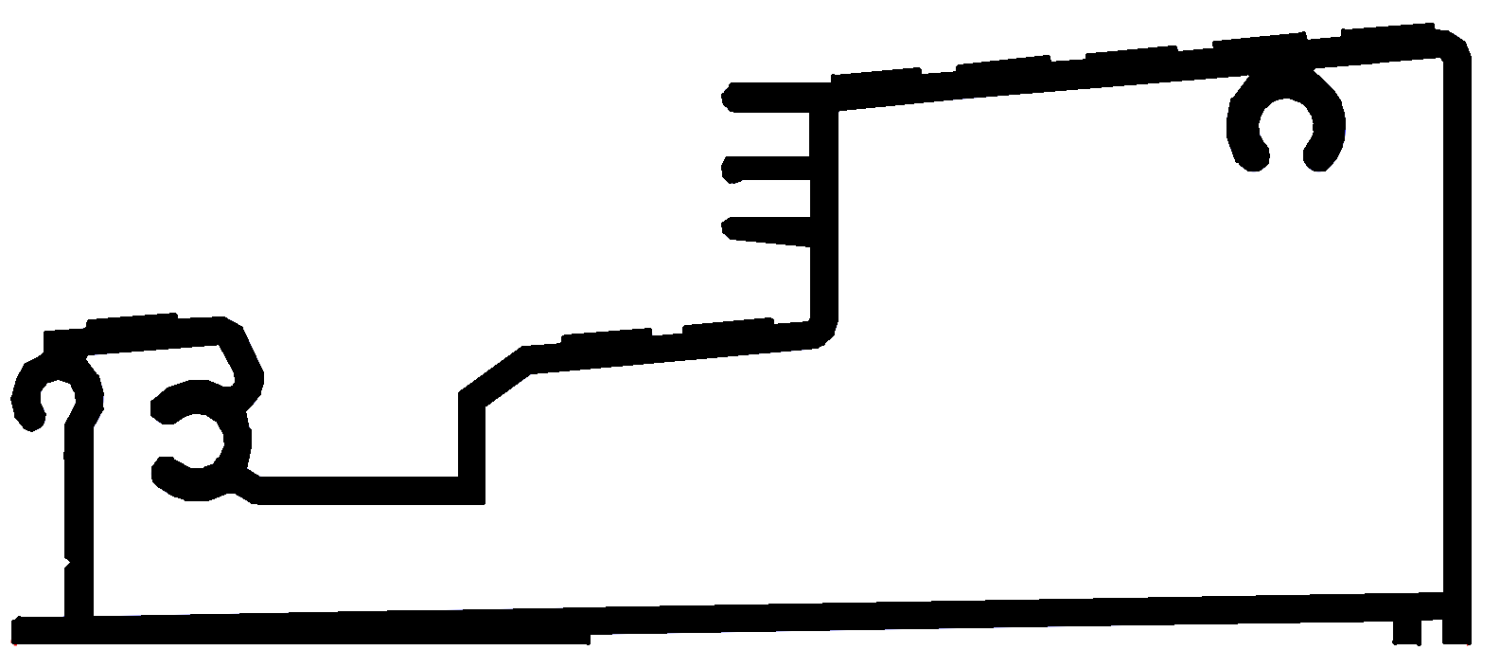

729	45mm Water Rated Outward Sill	729
